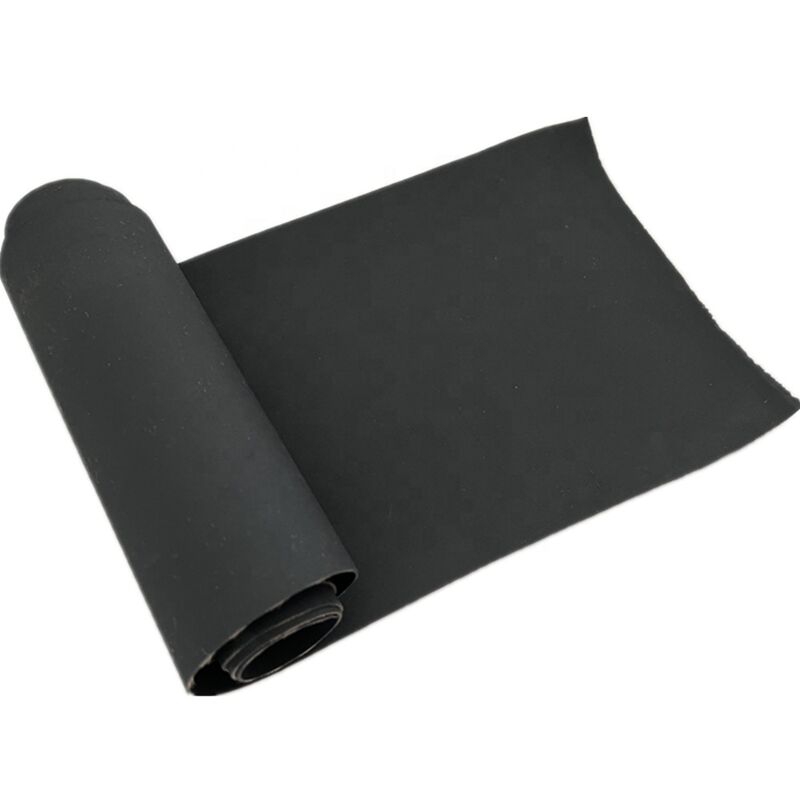

Cloth Insertion Gasket Nylon Insert Rubber Sheet With SBR NBR EPDM NR

Cloth Insertion Gasket Nylon Insert Rubber Sheet With SBR NBR EPDM NR

  • Cloth Insertion Gasket Nylon Insert Rubber Sheet With SBR NBR EPDM NR
  • Cloth Insertion Gasket Nylon Insert Rubber Sheet With SBR NBR EPDM NR
  • Cloth Insertion Gasket Nylon Insert Rubber Sheet With SBR NBR EPDM NR
  • Cloth Insertion Gasket Nylon Insert Rubber Sheet With SBR NBR EPDM NR
  • Cloth Insertion Gasket Nylon Insert Rubber Sheet With SBR NBR EPDM NR
  • Cloth Insertion Gasket Nylon Insert Rubber Sheet With SBR NBR EPDM NR
Cloth Insertion Gasket Nylon Insert Rubber Sheet With SBR NBR EPDM NR
Detail produk:
Tempat asal: Cina
Nama merek: skypro
Nomor model: SK3002
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 200
Kontak
Detil Deskripsi produk
Bahan: NR + SBR Ketebalan: 1-50mm
Kekerasan: 60 +/- 5 Pantai Ketebalan produksi: 2-10 mm
Panjang: 10-50 m Lebar: 500mm-3000mm
Bahan sisipan: Katun, nilon atau EP Permukaan Selesai: Halus atau bertekstur
Jumlah lapisan: 1 atau 2 atau 3 lapis Pantai kekerasan: SEBUAH 65 +/- 5
Kepadatan: 1.5 g/cm3 Kekuatan Tarik: 3 MPa
Pemanjangan: 200-300% Warna: Hitam
Layanan Pemrosesan: Pencetakan, Pemotongan
Menyoroti:

Nylon insert rubber gasket

,

SBR neoprene rubber sheet

,

EPDM cloth insertion gasket

Cloth Insertion Gasket Nylon Insert Rubber Sheet
High-performance fabric-reinforced rubber sheet with SBR, NBR, EPDM, or NR materials for industrial gasketing applications.
Product Specifications
Product Name Cloth Insertion Rubber Sheet
Material SBR
Production Range Thickness: 2-10 mm
Length: 10-50 m
Width: 500mm-3000mm
Color Black
Insertion Material Cotton, nylon or EP
Surface Finish Smooth or textured
Number of Plies 1, 2 or 3 plies
Hardness Shore A 65 +/- 5
Density 1.5 g/cm³
Tensile Strength 3 MPa
Elongation 200-300%
Key Features
  • Made with SBR rubber with incremental cloth insert reinforcement throughout material thickness
  • Enhanced durability and superior strength under both hot and cold loads
  • Primarily used in gasketing applications as high-strength diaphragms
  • Ideal for high-pressure and low-pressure junction applications
Packaging & Transportation
Packing Method Rolled or flat sheet, 50-100kg/roll or custom specifications
Packing Material Inner PE film + outer woven plastic bags, palletized for extra reinforcement
Shipping Marks Neutral packing with printed marks
Delivery Time 15 days after PO and down payment receipt
Freight Options Sea (FCL & LCL) or air freight
Special Sizes Custom cutting services available
Lamination Additional lamination with PSA, textiles, or other materials
Frequently Asked Questions
What is your company's capability?
Skypro is a professional rubber sheet manufacturer with over two decades of experience, ranking among China's top 10 largest rubber factories.
What is your annual production capacity?
We produce more than 18,000 tons of rubber sheet products annually.
How can I get samples?
We provide free samples. New clients cover delivery costs, which are deducted from formal order payments.
Product Images

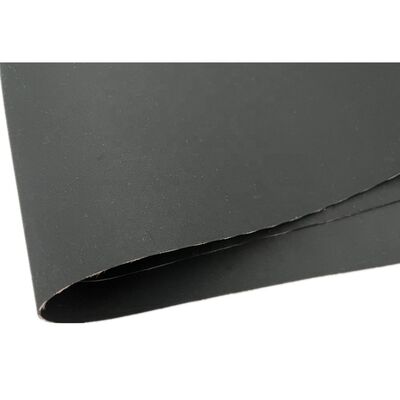

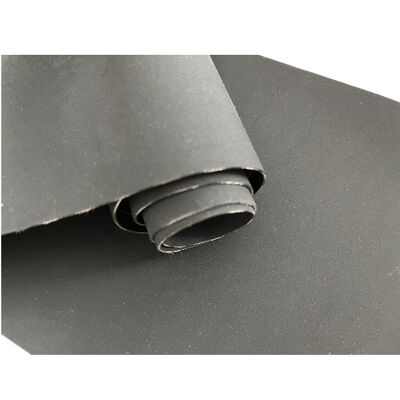

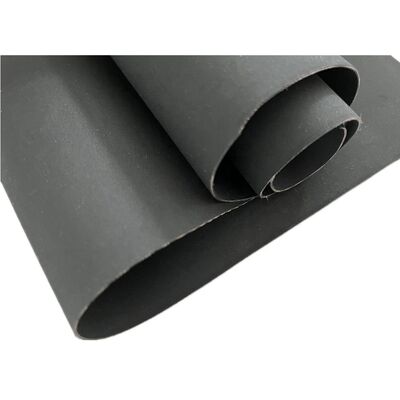

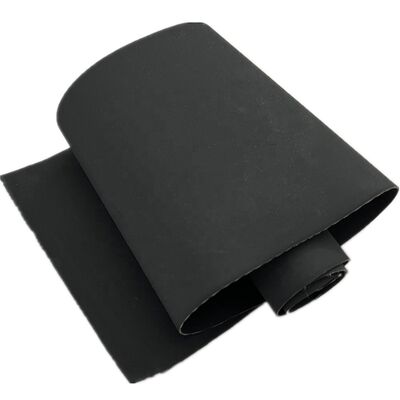

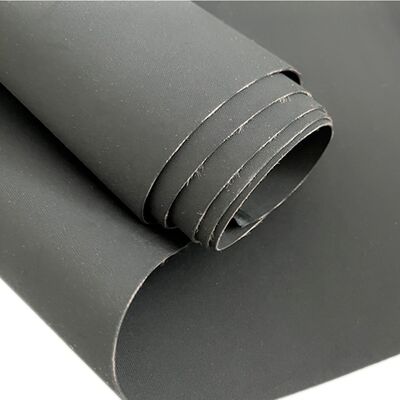

Cloth Insertion Gasket Nylon Insert Rubber Sheet With SBR NBR EPDM NR 0 Cloth Insertion Gasket Nylon Insert Rubber Sheet With SBR NBR EPDM NR 1 Cloth Insertion Gasket Nylon Insert Rubber Sheet With SBR NBR EPDM NR 2 Cloth Insertion Gasket Nylon Insert Rubber Sheet With SBR NBR EPDM NR 3 Cloth Insertion Gasket Nylon Insert Rubber Sheet With SBR NBR EPDM NR 4
